Filling machinery · compare the range
Compare the available atex filling machines and review each model at a glance. Share your product, fill volume, container and output and a Worthing Ltd engineer can help identify the right configuration.
Compare before you enquire
Filter by production setup or search the specifications. Leave either field open if you are not sure yet.

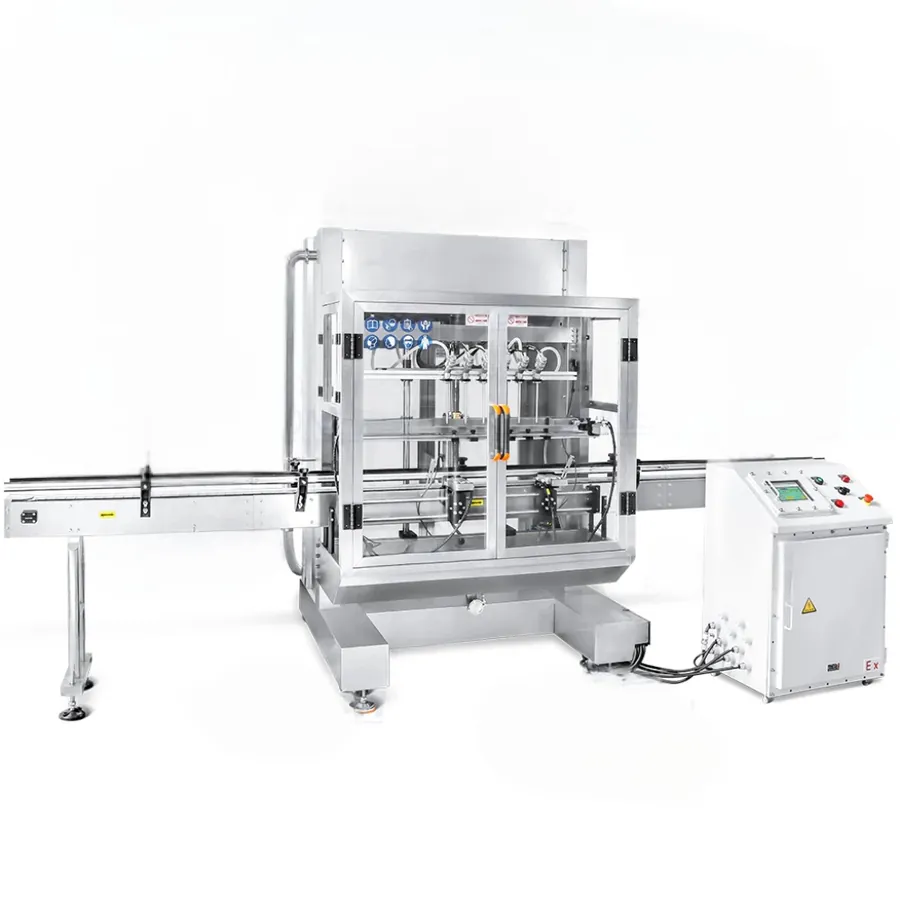

Automatic
Automatic filling platform engineered for flammable solvents in zoned environments. Explosion‑protected electricals and pneumatic actuation reduce ignition risks and support compliance.

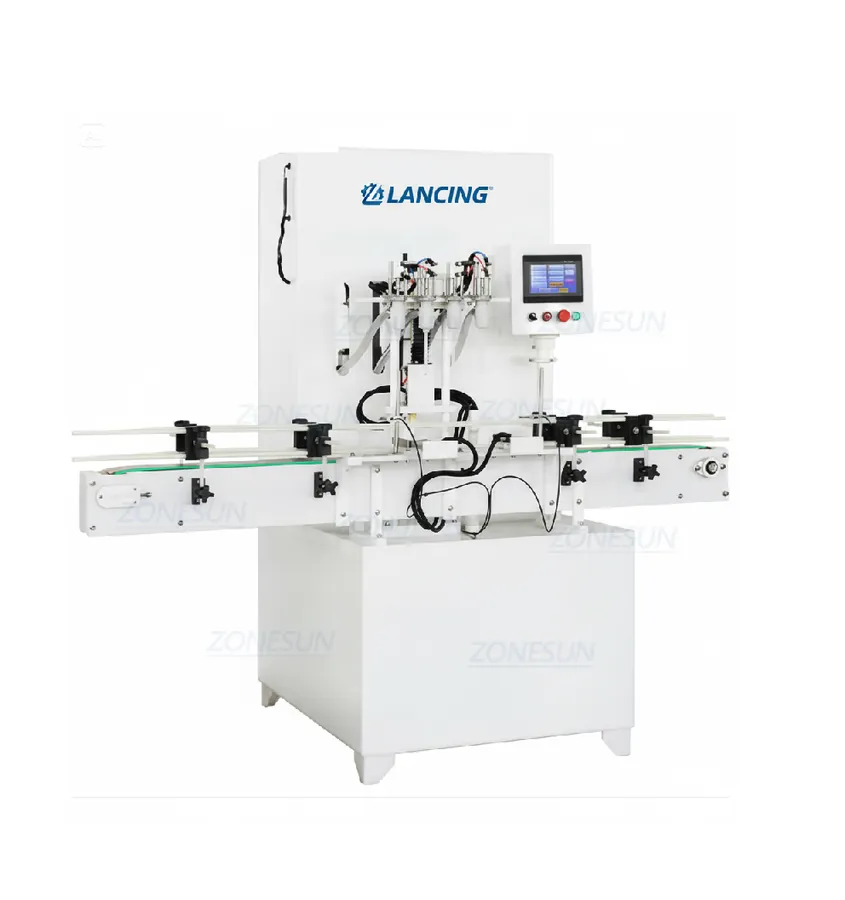

Automatic
Automatic gravity filler engineered for corrosive liquids like bleach, acids and fertilizers. Non‑metal wetted parts (PP/PTFE/PVC) protect product quality and machine life.

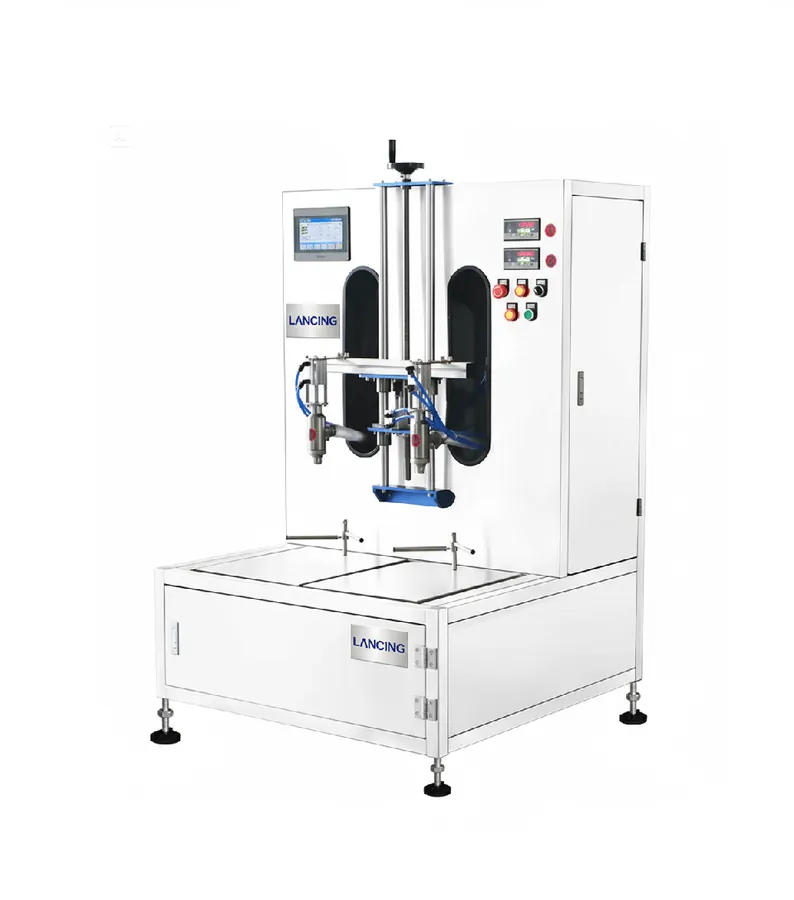

Semi-automatic
Corrosion‑resistant PP construction and diving nozzles for bleach, disinfectants and other aggressive liquids. Built on a proven platform with configurable heads and PLC control.

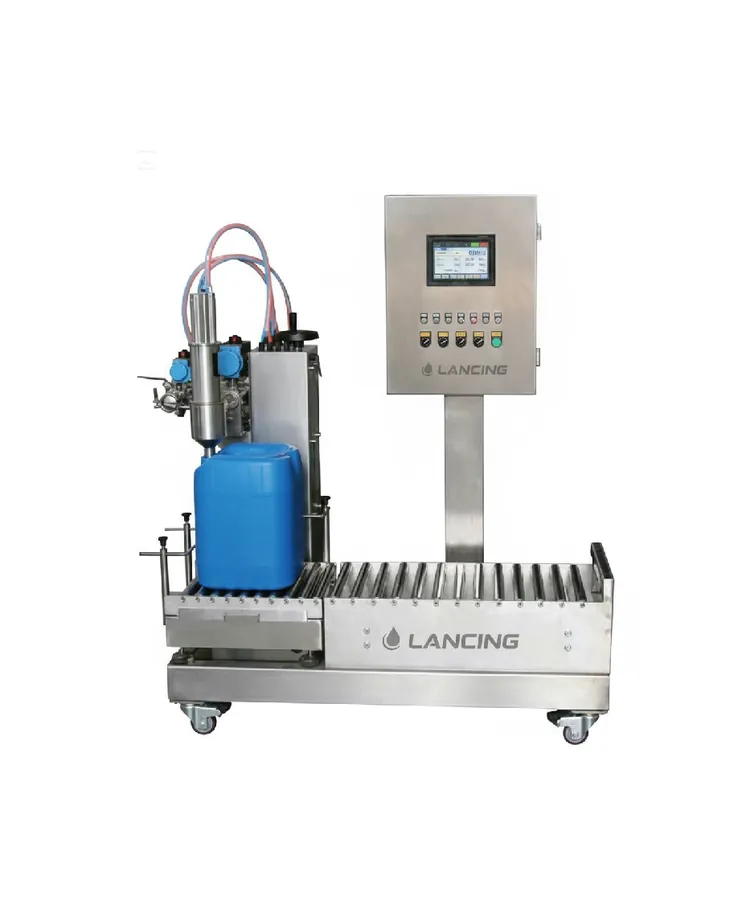

Semi-automatic
Weighing-based large-volume filler for 5–30 L containers. Diving nozzles handle foamy liquids cleanly while the gear pump keeps supply steady; the conveyor transfers filled buckets downstream.
Benchtop / manual
Explosion‑proof weigh‑fill station for flammable solvents like acetone, thinners and gasoline. Ex‑proof control box and spray‑proof discharge ensure safe, repeatable fills.

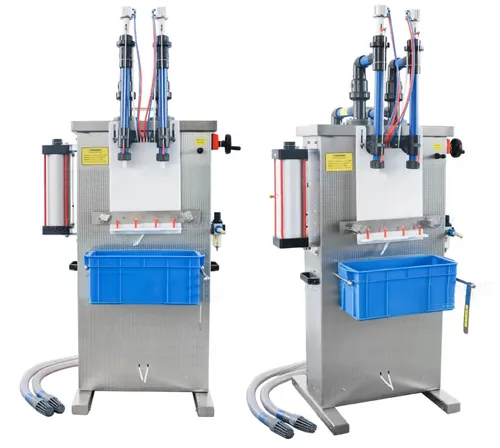

Semi-automatic
Fully pneumatic, double‑head filler engineered for corrosive liquids like toilet cleaner and acids. All wetted parts are plastic to resist HCl and similar chemicals.
| Machine | Output | Fill range | Heads | Guide price |
|---|---|---|---|---|
| ATEX Automatic Filling Machine | See model specification | Product dependent | 1–6 heads (per throughput) | Quoted to specification |
| Automatic Anti Corrosion Filling Machine | ≈200–2500 bottles/hour (by volume) | Gravity; anti‑corrosion nozzles | 4 (customisable) | Quoted to specification |
| Semi Automatic Bleach Filling Machine | ≈18 bottles/min @ 500 ml | ≈18 bottles/min @ 500 ml | 6 (customisable) | Quoted to specification |
| Semi Automatic Bucket Filling Machine | ≈100–120 bottles/hour (volume‑dependent) | 5–30 L | 2 × diving heads | Quoted to specification |
| ATEX Weigh Filling Machine | ≈3–6 bottles/min (volume‑dependent) | 10–30 L | Model dependent | Quoted to specification |
| Semi Automatic Corrosion Proof Filling Machine | ≈10–30 bottles/min | Product dependent | 2 | Quoted to specification |
Send us your product and pack details and we will help narrow the range.
Speak with an engineer
Tell us what you are packaging and the output you need. We will use the page reference to route your enquiry to the right machinery specialist.
Hazardous-area enquiries need evidence
ATEX is not a generic machine feature that can be assumed from a search term. The substance, safety data sheet, hazardous-area classification, equipment category, temperature class, product-contact materials, grounding, extraction, container and site controls must be reviewed before any filling equipment is proposed.
Provide the current safety data sheet, flash point and relevant physical, chemical and process information.
State the site classification, zone, gas or dust group, temperature class and the responsibilities of the site duty holder.
Share fill range, container, accuracy, output, cleaning, materials, utilities, layout, access and required dates.
No. Suitability depends on the substance, area classification, equipment category, temperature class, materials, ignition risks and the complete site process.
Send the current safety data sheet, zone information, fill and container details, site utilities and controls, output and dates. Further engineering evidence may be required.
No. The website identifies possible equipment families only. Written technical review and rental confirmation are required for the specific application and site.
Use flexible machinery hire for trials, seasonal demand, breakdown cover or a defined production run. Tell us what you are packing, the output you need, your site and dates; Worthing Ltd will check suitable equipment and availability.
