Packaging machinery · compare the range
Compare the available shrink wrapping machinery and review each model at a glance. Share your pack format, product and production requirement and a Worthing Ltd engineer can help identify the right configuration.
Compare before you enquire
Filter by production setup or search the specifications. Leave either field open if you are not sure yet.
Automatic
Semi‑automatic chamber shrink wrapper with integrated L‑sealing, film cutting and shrinking in one compact unit. Ideal for boxes and small items (perfume, cosmetics, electronics). Control panel lets you.
Automatic

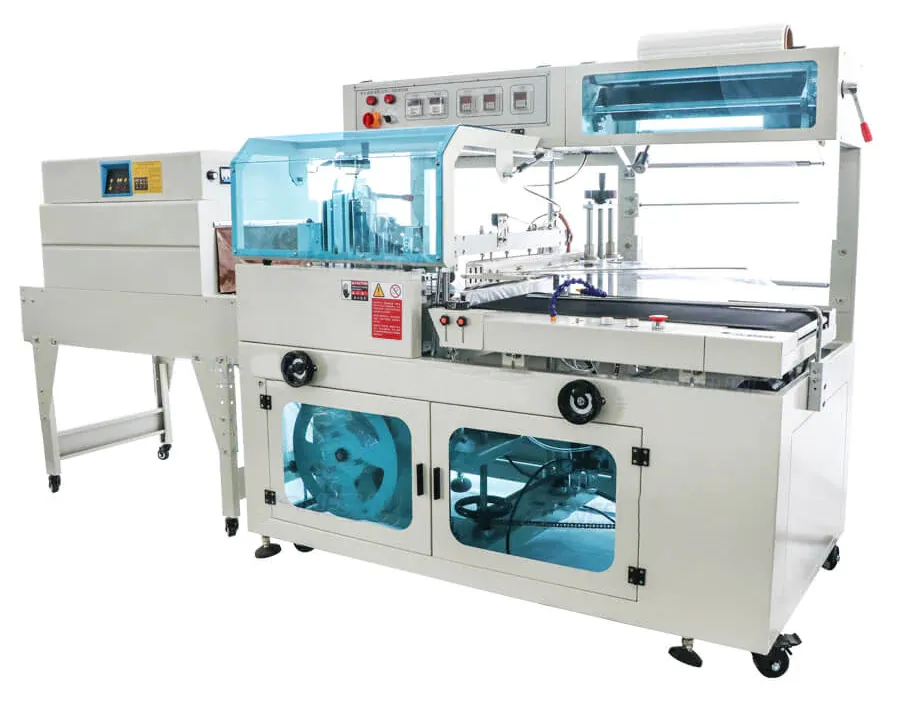

Automatic L‑type sealing and shrink wrapping for boxes, books and similar products. The machine folds the film, seals and cuts the pack, then works with a shrink tunnel for a tight, professional finish..
Automatic

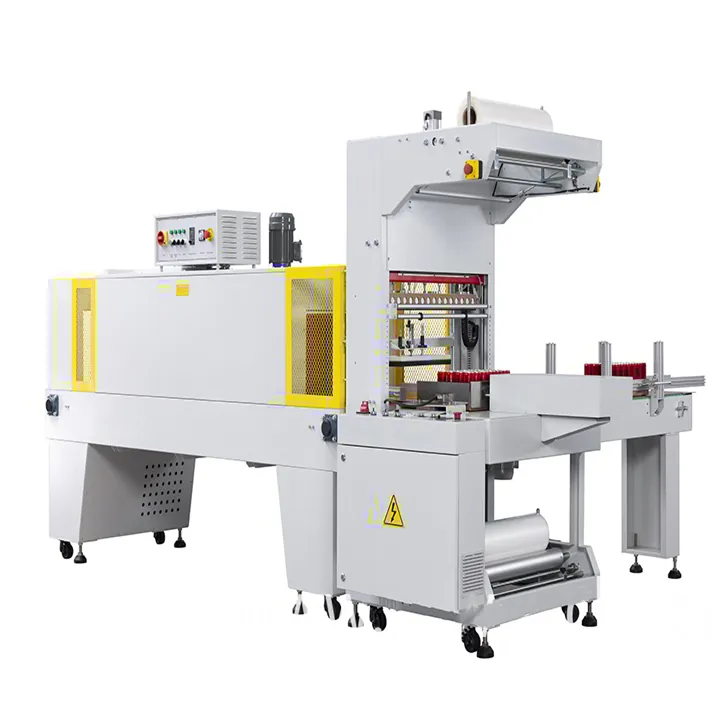

ST range of sleeve wrappers are used for transport packing of beverages, beer, tin cans and mineral water etc with or without a tray; also suitable for shrink wrapping products such as electric appliances.
Benchtop / manual
Compact hot‑air shrink tunnel for cap bands and bottle labels. Digital temperature and airflow control with variable‑speed conveyor deliver even heat around the container. Adjustable working height suits.
Automatic
High‑speed shrink sleeve labelling for round, square, or oval bottles. The LUSTB150 automatically feeds, positions, and cuts PET/PVC/OPS film sleeves, then hands off to a shrink unit for a tight, 360°.
Automatic

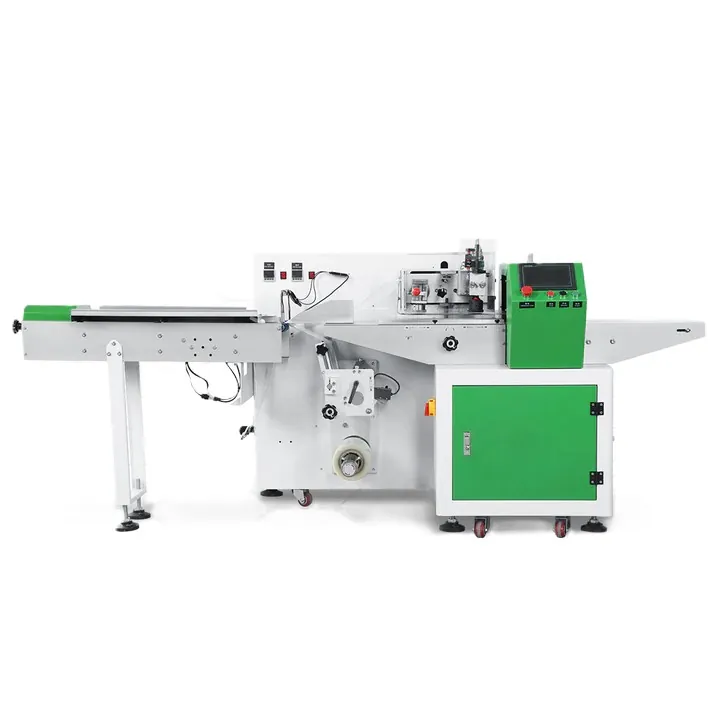

Automatic horizontal flow‑wrapping for single items and multipacks. Feeds, wraps and seals in one continuous motion with PLC touchscreen control, automatic film feed and photo‑eye registration. Ideal for.
| Machine | Output | Format | Operation | Guide price |
|---|---|---|---|---|
| Chamber Sealing Machines | 0–800 pcs/h | 550 × 400 × 230 mm | Panel for temperature & timing adjustment | Quoted to specification |
| Automatic L‑Sealer Machines | See model specification | Application dependent | Automatic L‑type sealing & cutting | Quoted to specification |
| Automatic Sleeve Sealing Machines | 0–6 packs/min | 2210 × 1450 × 2080 mm | Automatic | Quoted to specification |
| Heat Tunnels | Up to 15 m/min | ≈ 1500 × 500 × 1270 mm | Digital temperature & conveyor speed | Quoted to specification |
| Automatic Sleeve Applicator Machines | Up to 150 bottles/min | Round / square / oval bottles | Automatic | Quoted to specification |
| Flow Wrapping Machines | See model specification | ≈ 3836 × 890 × 1079 mm | PLC + touchscreen HMI | Quoted to specification |
Send us your product and pack details and we will help narrow the range.
Speak with an engineer
Tell us what you are packaging and the output you need. We will use the page reference to route your enquiry to the right machinery specialist.
Choosing a wrapping and sealing route
Shrink wrapping equipment includes L-sealers, chamber wrappers, sleeve wrappers and heat shrink tunnels. These are not interchangeable: product dimensions, collation, film, seal position, heat route, finished-pack standard and throughput determine which rental route should be checked.
L-sealers support a separate sealing and tunnel process, while chamber machines combine sealing and shrinking for suitable batch and lower-output work.
Sleeve sealing can suit stable multipacks and transit packs, with or without a tray, where collation and film support the required finish.
Tunnel aperture, conveyor speed, film response, electrical load, heat, ventilation, footprint and access must be checked with the complete pack.
A defined production run can be discussed. Worthing Ltd needs the product or collation, dimensions, film, output, site, utilities and dates before confirming equipment and rental scope.
An L-sealer encloses a suitable product in film before shrinking, while a sleeve wrapper typically applies a film sleeve around a stable product or collation. The required enclosure, presentation and transit performance guide the choice.
A compatible tunnel may be required with an L-sealer or sleeve wrapper. The sealing machine, film, tunnel aperture, conveyor speed, electrical supply, ventilation and finished pack must be reviewed together.
Decide whether the required result is a fully enclosed retail pack, a sleeve around a stable group or a printed sleeve label on a container. These outcomes need different equipment and film arrangements. A flow wrapper shown in a wider machinery range does not by itself imply a heat-shrink process; check the intended film and finishing operation.
Send the actual smallest and largest packs, any tray or support and the intended film specification. Observe whether the seal lands on a corner, loose product moves before shrinking or the collation distorts during transfer. A good-looking single sample is not enough if normal dimensional variation moves the pack outside the sealing or tunnel window.
Use approved examples to define seal continuity, film presentation, barcode readability, pack stability and acceptable cosmetic marks. Inspect the cooled pack as well as its immediate tunnel exit appearance. For heat-sensitive products or packaging, the permitted exposure and suitability need an application review; a successful film shrink alone does not establish product acceptability.
Check whether the quotation covers the sealer, compatible tunnel, infeed/outfeed support, required film and any format parts. Record settings and replenishment tasks from the agreed trial, together with available electrical supply and the safe operating instructions. Compare the L-sealer, sleeve-wrapper and tunnel routes before requesting dates; availability remains subject to confirmation.
Use flexible machinery hire for trials, seasonal demand, breakdown cover or a defined production run. Tell us what you are packing, the output you need, your site and dates; Worthing Ltd will check suitable equipment and availability.
