Filling machinery · compare the range
Compare the available liquid filling machines and review each model at a glance. Share your product, fill volume, container and output and a Worthing Ltd engineer can help identify the right configuration.
Compare before you enquire
Filter by production setup or search the specifications. Leave either field open if you are not sure yet.
Automatic
Four‑nozzle automatic piston filler for honey, sauce, cream and lotion. Choose the appropriate cylinder module for your fill size.
Automatic
Six‑nozzle automatic piston filler for viscous products like cream, pesto or béchamel. Select a cylinder module (5–100 to 1000–5000 ml) and run precise volumetric fills.
Automatic
High‑speed servo piston filler with following nozzles that track bottles on the move. Set volume directly on the touchscreen; electric‑eye detection and a feeding pump help maintain accuracy at speed.
Automatic

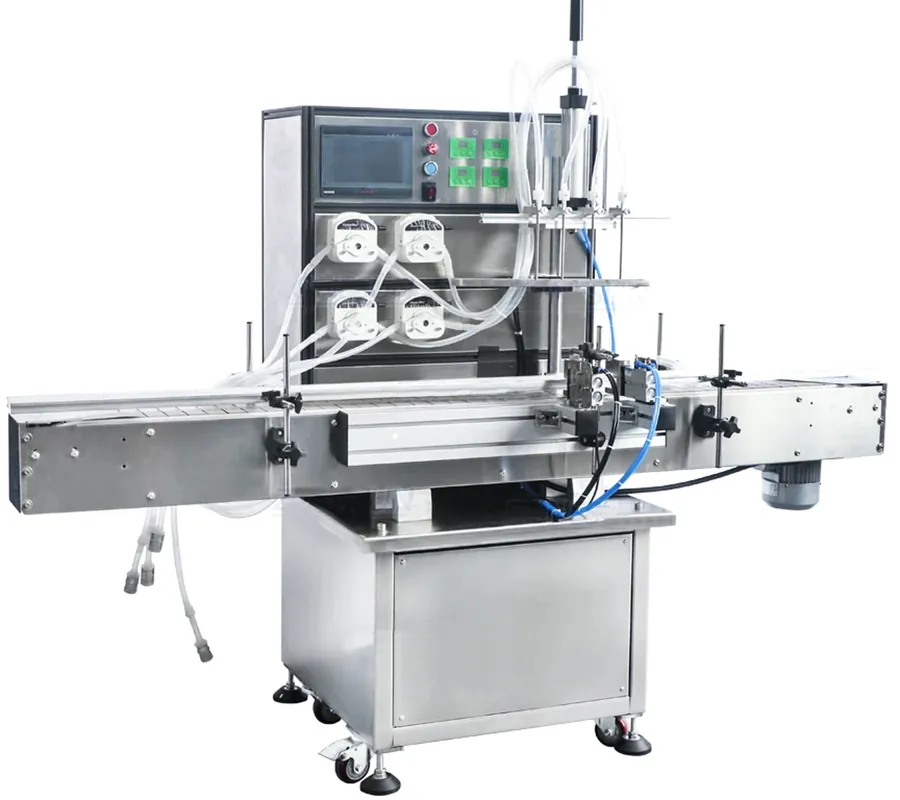

Servo‑controlled peristaltic filler with touch HMI. Dosing volume is set directly on the screen—no need to time the fill. Four peristaltic channels keep product inside disposable tubing for rapid.
Automatic
Equipped with diaphragm pump, this liquid filling machine can work automatically. The machine can fill about 30 bottles/min (at 5L). Each filling nozzle of this machine can be controlled separately.
Automatic

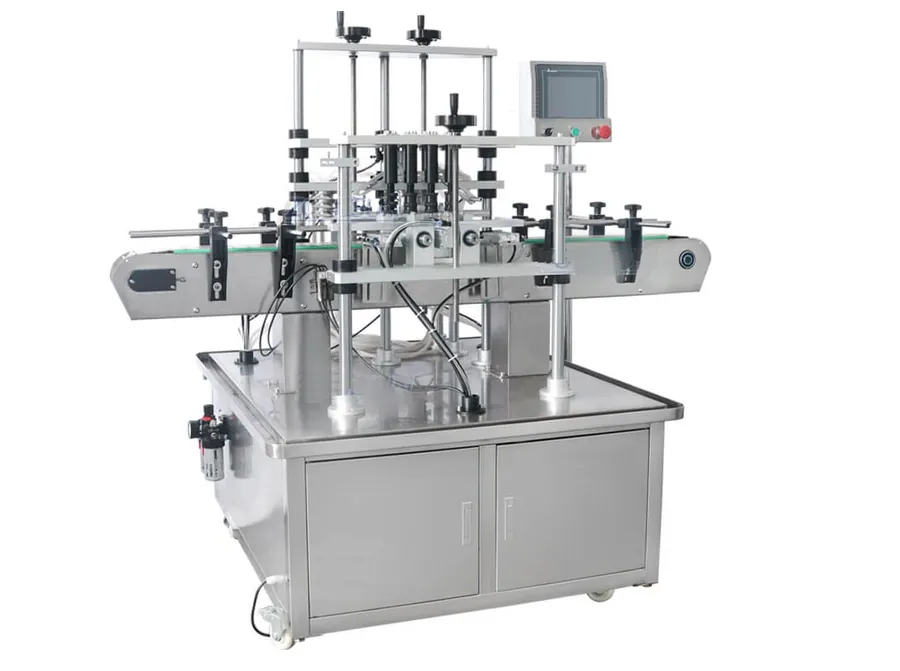

Full‑automatic vacuum level filler for perfumes, eyewash and low‑viscosity liquids. Vacuum back‑suction controls the liquid level precisely and protects fragrance integrity.
Semi-automatic
Compact 4‑head counter‑pressure can filler with mixing module. Designed for soda, sparkling drinks and RTD cocktails in 330–500 ml cans.
Automatic
Manufactured for Worthing Ltd, GD series constant pressure filler is an advanced level bottle-filling machine which is designed and developed to offer consistent and reliable operation. These machines are.
Automatic
Automatic filling platform engineered for flammable solvents in zoned environments. Explosion‑protected electricals and pneumatic actuation reduce ignition risks and support compliance.
Automatic
Automatic gravity filler engineered for corrosive liquids like bleach, acids and fertilizers. Non‑metal wetted parts (PP/PTFE/PVC) protect product quality and machine life.
Semi-automatic
Weighing-based large-volume filler for 5–30 L containers. Diving nozzles handle foamy liquids cleanly while the gear pump keeps supply steady; the conveyor transfers filled buckets downstream.
Semi-automatic
Corrosion‑resistant PP construction and diving nozzles for bleach, disinfectants and other aggressive liquids. Built on a proven platform with configurable heads and PLC control.
Semi-automatic
Fully pneumatic, double‑head filler engineered for corrosive liquids like toilet cleaner and acids. All wetted parts are plastic to resist HCl and similar chemicals.
Automatic
Tabletop 2–4 head piston filler for soaps, shampoos and viscous liquids. Accurate volumetric dosing with ≤±1% typical accuracy.
Semi-automatic
Single‑nozzle peristaltic filler with integrated scale for higher accuracy. Designed for inks, perfumes and essential oils where weight feedback improves consistency.
Benchtop / manual
Rotary premade pouch filler with twin piston‑pump heads. Opens, fills and seals Doypacks for creams, detergents and other liquids at 20–40 ppm.
Other formats
Compact vertical form‑fill‑seal for liquids and sauces. Piston pump dosing, 80 L stirred hopper and multiple seal styles deliver retail‑ready sachets.
Benchtop / manual
Explosion‑proof weigh‑fill station for flammable solvents like acetone, thinners and gasoline. Ex‑proof control box and spray‑proof discharge ensure safe, repeatable fills.
Automatic
Automatic 4‑head diaphragm‑pump filler for gels, shampoo and detergents. Large 40 L/min flow rate supports ≈30–45 bpm with four independently controlled nozzles.
Benchtop / manual

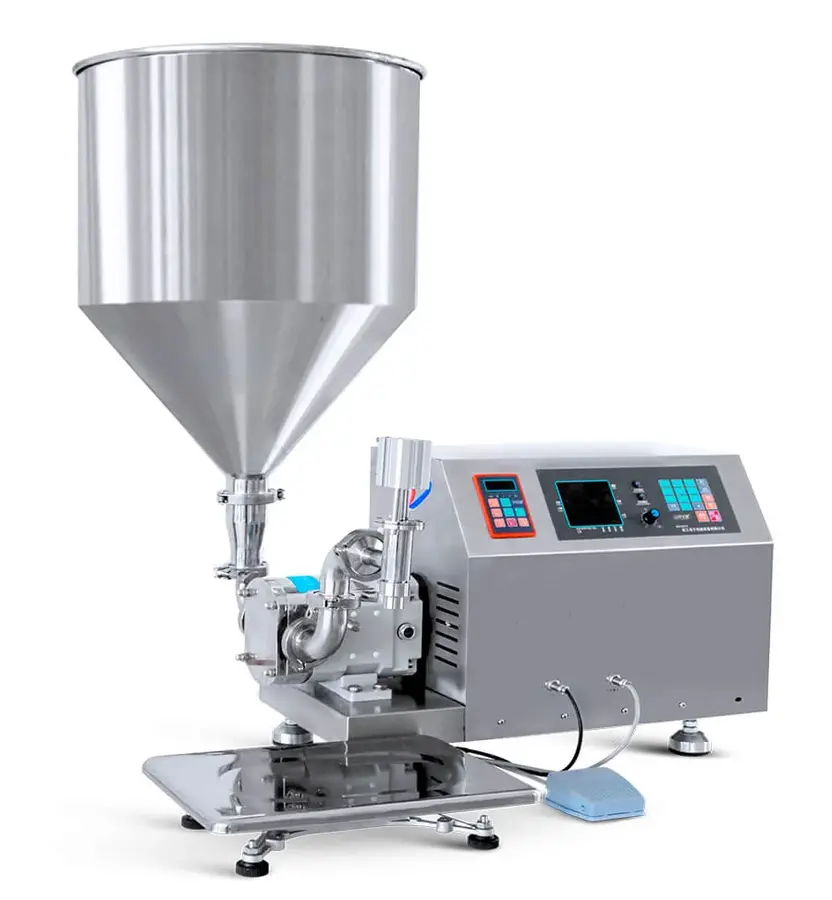

The Roto Lube pump filling machine has advantage of high accuracy when filling thick liquid or paste like jam,noodle pulp,meat stuffing,tomato paste etc.It is widely used in food,cosmetics,daily chemical.
Benchtop / manual
Desktop automatic peristaltic filler with 4 nozzles. Each head has an independent pump (≈60 W) delivering up to ≈4000 ml/min; ≈30–50 bpm depending on bottle and liquid.
Automatic
Overflow Vacuum Fillers are designed to fill to a level rather than to dispense a specific volume of liquid. Ideal for applications with inconsistent glass bottles where the level at the neck of the bottles.
Semi-automatic
Pneumatic piston filler for liquids and pastes. Multiple cylinder ranges from 5–100 ml up to 1000–5000 ml; dual nozzles with anti‑drip deliver ≈10–50 bpm.
Semi-automatic
Bench‑friendly gear‑pump filler with built‑in weighing. High flow (up to 36 L/min) handles oils and thicker liquids. Set a target weight for simple, accurate fills.
| Machine | Output | Fill range | Heads | Guide price |
|---|---|---|---|---|
| Automatic Volumetric Filling Machine | See model specification | 5–100 to 1000–5000 ml | 4 | Quoted to specification |
| Automatic Paste Filling Machine | See model specification | 5–100 to 1000–5000 ml | 6 | Quoted to specification |
| Automatic Servo Filling Machine | ≈40–80 bottles/min (product‑dependent) | 5–100 / 10–300 / 50–500 / 100–1000 ml | Customisable multiple heads | Quoted to specification |
| Automatic Peristaltic Filling Machine | ≈10–20 BPM (100 ml water) | ≈10–20 BPM (100 ml water) | Model dependent | Quoted to specification |
| Gear Pump Filling Machines | See model specification | Product dependent | Model dependent | Quoted to specification |
| Automatic Vacuum Filling Machine | ≈20–40 bottles/min | Product dependent | 4 (customisable) | Quoted to specification |
| Semi Automatic Isobaric Filling Machine | ≈240–400 cans/hour | ≈240–400 cans/hour | 4 | Quoted to specification |
| Isobaric Filling Machine | See model specification | Product dependent | Model dependent | Quoted to specification |
| ATEX Automatic Filling Machine | See model specification | Product dependent | 1–6 heads (per throughput) | Quoted to specification |
| Automatic Anti Corrosion Filling Machine | ≈200–2500 bottles/hour (by volume) | Gravity; anti‑corrosion nozzles | 4 (customisable) | Quoted to specification |
| Semi Automatic Bucket Filling Machine | ≈100–120 bottles/hour (volume‑dependent) | 5–30 L | 2 × diving heads | Quoted to specification |
| Semi Automatic Bleach Filling Machine | ≈18 bottles/min @ 500 ml | ≈18 bottles/min @ 500 ml | 6 (customisable) | Quoted to specification |
| Semi Automatic Corrosion Proof Filling Machine | ≈10–30 bottles/min | Product dependent | 2 | Quoted to specification |
| Compact Automatic Volumetric Filling Machine | ≈10–30 bottles/min | 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml | 2 (customisable to 4) | Quoted to specification |
| Semi Automatic Peristaltic Weigh Filling Machine | See model specification | Small bottles and vials | 1 | Quoted to specification |
| Pre‑made Pouch Filling Machine | ≈20–40 pouches/min | Product dependent | Model dependent | Quoted to specification |
| Liquid VFFS Sachet Machine | See model specification | Product dependent | Model dependent | Quoted to specification |
| ATEX Weigh Filling Machine | ≈3–6 bottles/min (volume‑dependent) | 10–30 L | Model dependent | Quoted to specification |
| Automatic Diaphragm Pump Filling Machine | ≈30–45 bottles/min | Product dependent | 4 (independent control) | Quoted to specification |
| Roto Lube Filling Machine | See model specification | Ketchup, jam, creams, chili sauce | Customisable | Quoted to specification |

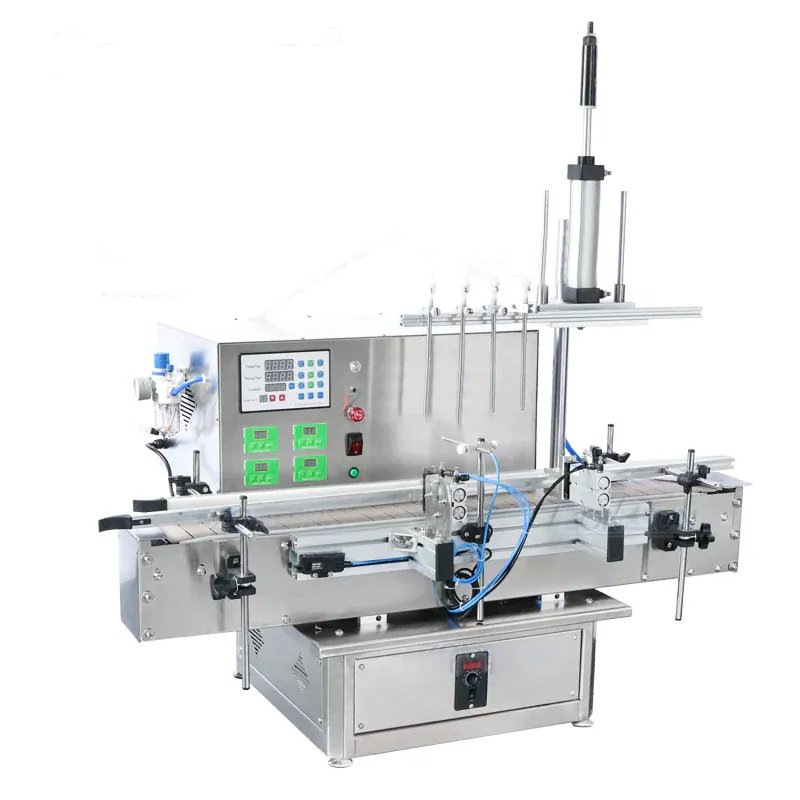

| Compact Four Head Peristaltic Filling Machine | ≈30–50 bottles/min | 10–500 ml (110 V) / 10–1000 ml (220 V) | 4 (customisable) | Quoted to specification |

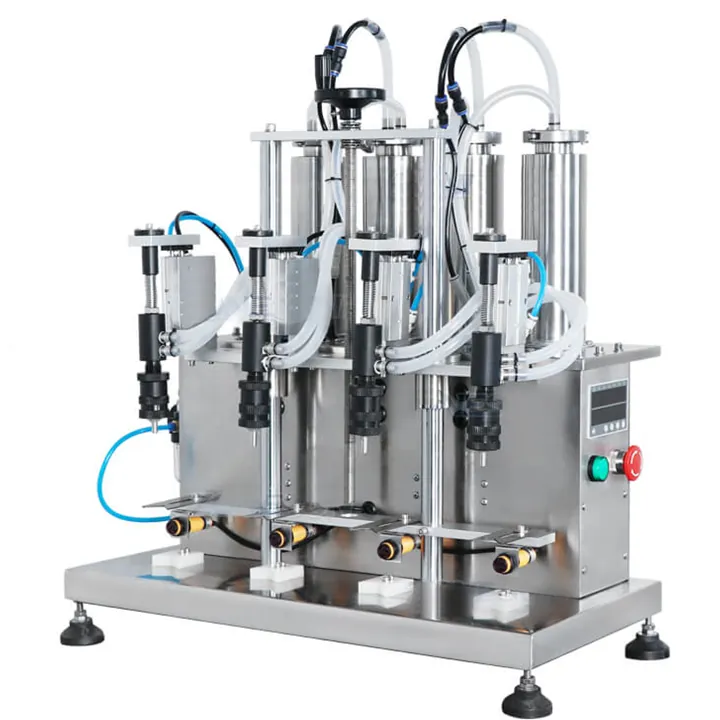

| Vacuum Filling Machine | See model specification | Product dependent | Model dependent | Quoted to specification |
| Semi Automatic Volumetric Filling Machine | ≈10–50 bottles/min | Product dependent | Model dependent | Quoted to specification |
| Semi Automatic Gear Pump Filling Machine | See model specification | Product dependent | Height adjustable | Quoted to specification |
Send us your product and pack details and we will help narrow the range.
