Compact Automatic Volumetric Filling Machine


Tabletop 2–4 head piston filler for soaps, shampoos and viscous liquids. Accurate volumetric dosing with ≤±1% typical accuracy.


View Specs Check hire availability

  • 2 or 4 heads
  • Viscous‑friendly
  • 10–30 bottles/min
  • Wide volume ranges

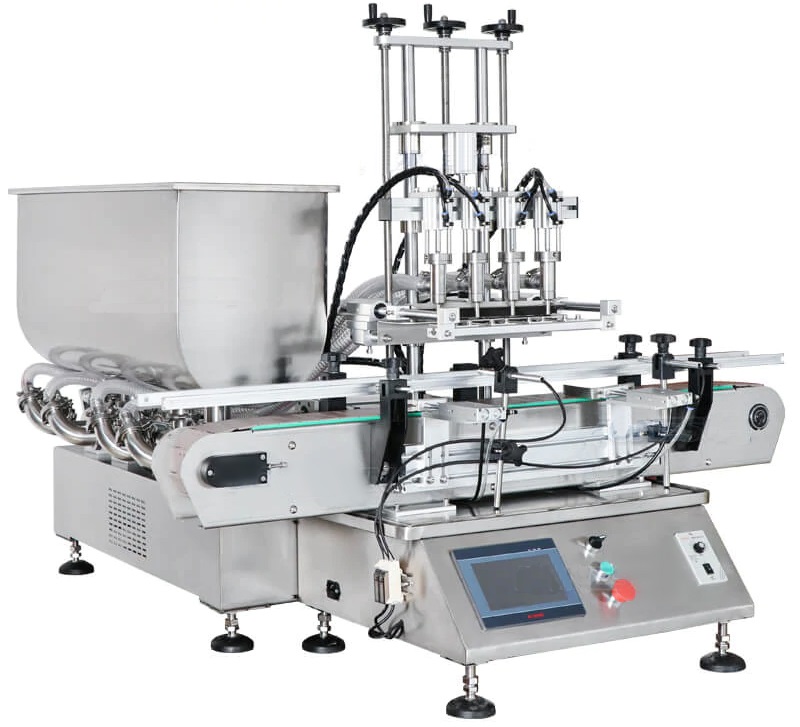

LUDTHSP2 tabletop piston filler 2/4 heads

Key Features

2 or 4 heads

Scale your throughput without changing platforms.

Viscous‑friendly

Piston pump handles lotions, shampoos and detergents.

10–30 bottles/min

Depends on dose and bottle size.

Wide volume ranges

5–100 ml up to 1000–5000 ml options.

Touchscreen HMI

Easy setup; language customizable.

Compact footprint

≈1270×1030×1200 mm; ~112 kg.

Technical Specifications

Filling System

Model
LUDTHSP2
Pump type
Piston
Heads
2 (customizable to 4)
Volume options
5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml
Speed
≈10–30 bottles/min
Accuracy
≤ ±1%

Utilities & Dimensions

Voltage
110/220 V, 50–60 Hz
Power
≈400 W
Air pressure
0.4–0.6 MPa
Nozzle diameter
OD 10 mm (others optional)
Machine size
≈1270 × 1030 × 1200 mm
Machine weight
≈112 kg

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Personal care

Liquid soap, lotion, shampoo, conditioner.

Household

Car shampoo and detergents.

Food (if suitable)

Low‑particulate sauces/oils.

What’s Included

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Product viscosity and target volume
  • BPM requirement and head count
  • Bottle sizes and neck finish
  • Compressed air & power availability
