4 filling heads
Compact footprint with strong throughput.
Filling machinery · Automatic

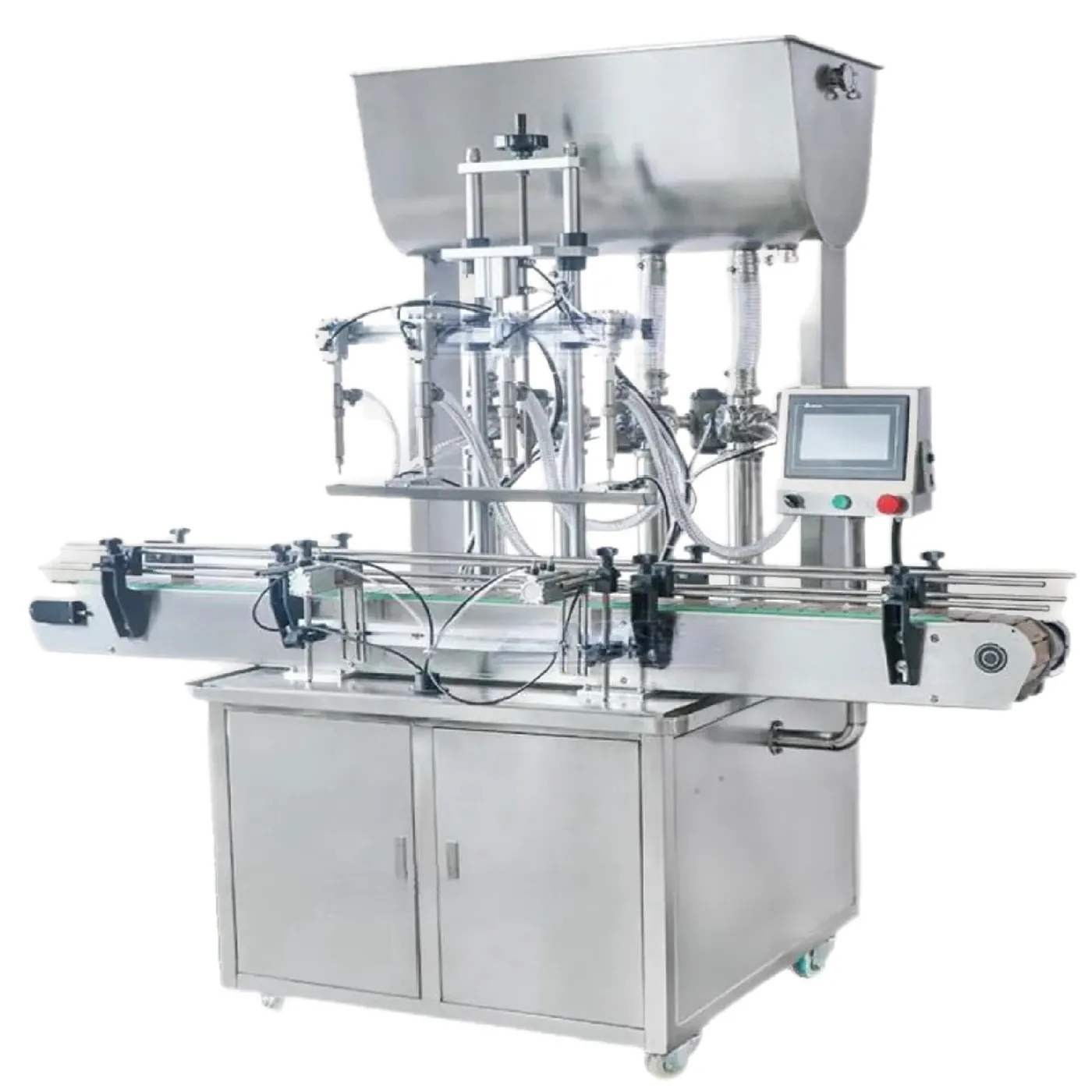

Automatic Volumetric Filling Machine
Four‑nozzle automatic piston filler for honey, sauce, cream and lotion. Choose the appropriate cylinder module for your fill size.
- Output / heads
- 4
- Fill range
- 5–100 to 1000–5000 ml
- Filling method
- Piston volumetric
- Guide price
- Quoted to specification
- Lead time confirmed with rental quote
- Warranty terms confirmed with rental quote
- UK sales & support
Built around the application
Key features
Review the machine's principal functions, controls and handling features.
Volumetric modules
5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml.
Anti‑drip nozzles
Clean finishes and less rework.
HMI control
Simple numeric volume entry.
Bottle detect
Reliable auto cycle and less spillage.
Stainless construction
Food/beauty friendly surfaces.
Reference configuration
Technical specification
Review the published machine figures below. Final performance is confirmed against your product and pack.
Machine & performance
- Head count
- 4
- Volume modules
- 5–100 to 1000–5000 ml
- Method
- Piston volumetric
- Accuracy
- ≤±1% (ref.)
- Media
- Paste and liquids
- Options
- Heated hopper, mixer
Container, application & options
- Voltage
- 110/220 V, 50–60 Hz
- Air
- 0.4–0.7 MPa typical
- Conveyor
- Integrated chain conveyor
- Controls
- Touchscreen HMI + sensors
- Materials
- Stainless steel contact parts
- Cleanability
- Tool‑less disassembly
Specification varies by application. Share your product, container and required output and Worthing Ltd will confirm the correct configuration before rental quote.
Where it fits
Typical applications
Food
Honey, sauces, condiments.
Cosmetics
Creams, lotions.
Household
Detergents and gels.
What's included
- 4‑nozzle filler with conveyor
- HMI and sensor set
- Nozzle kit
- User manual
Options & configuration
- Heated hopper
- mixer
Speak with an engineer
Ask about this machine
Add your name, company and either a phone number or email address. We will ask for technical details only when they are useful.
